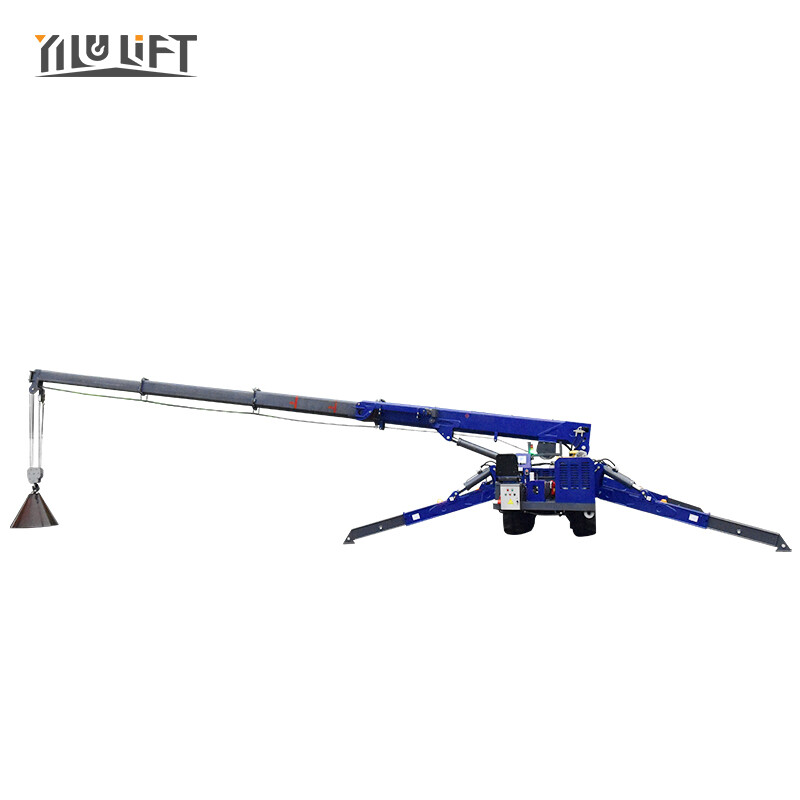

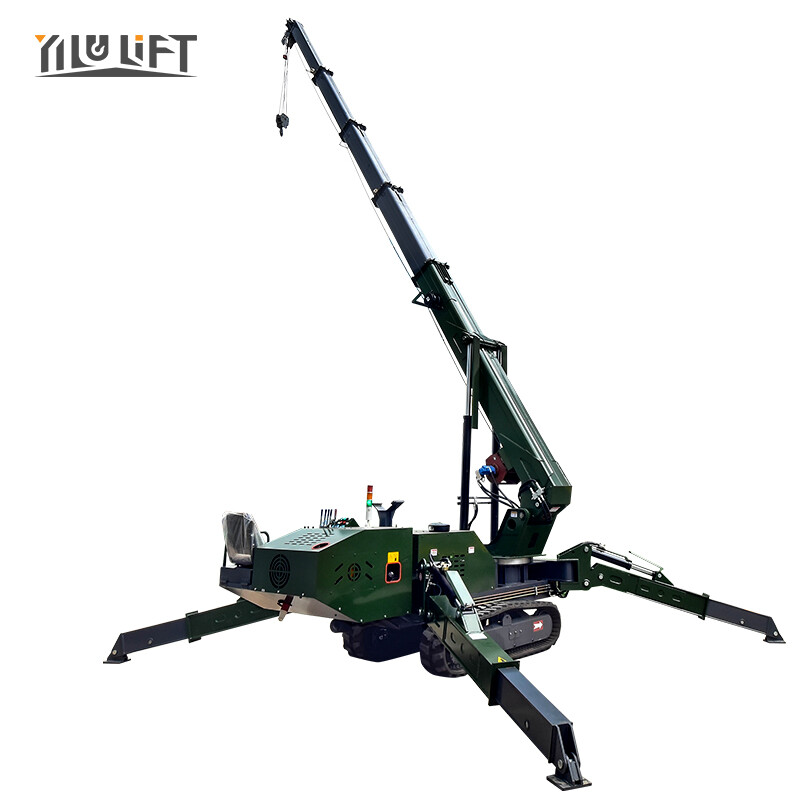

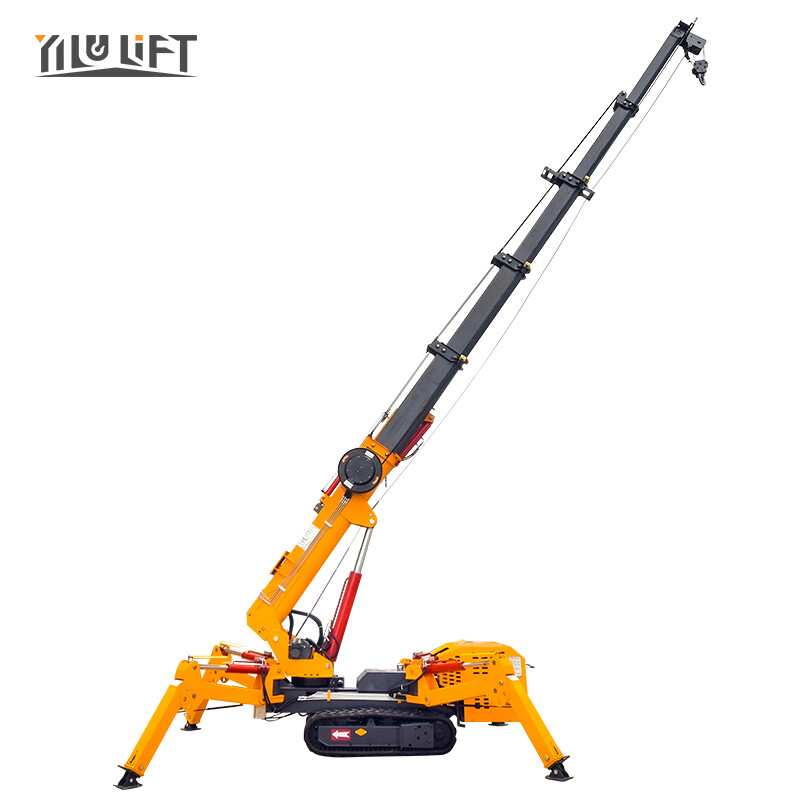

1.2~15Ton Spider Crane
Spider cranes, also known as mini cranes or compact cranes, are versatile pieces of equipment that have a wide range of applications in the construction industry. These innovative machines are capable of lifting and moving heavy loads with great precision and control, making them ideal for use in restricted or confined spaces where larger cranes cannot operate.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 13889928667
+86 13889928667
+86 13889928667
sales@yilulift.com
Contact Us

Product Description


With a lifting capacity ranging from 1.2 to 18 tonnes, spider cranes are an indispensable tool for builders, contractors, and other construction professionals. They can be used for a variety of tasks, including loading and unloading materials, installing glass panels and other building components, and placing heavy machinery in position.



One of the key advantages of spider cranes is their flexibility and manoeuvrability. Thanks to their compact size and crawler tracks, they can easily navigate through narrow doorways, around tight corners, and up and down stairs. This makes them perfect for use in urban environments and other areas with tight access.



Spider cranes can also be equipped with a range of optional extras to enhance their performance and functionality. These include remote control systems, torque displays, and fly jibs, among others. These features enable operators to work more efficiently and safely, reducing the risk of accidents and injuries on the job site.



In conclusion, spider cranes are a valuable and versatile piece of equipment for the construction industry. With their exceptional lifting capacity, precision control, and optional extras, they are well-suited to a range of applications and can help to improve productivity, safety, and efficiency on the job site.

Model TypeCL1.2CL2.0CL3.0CL5.0CL8.0CL10.0CL12.0CL14.0
Lifting Capacity1.2 ton2 ton3 ton5 ton8 ton10 ton12 ton14 ton
Max Lifting Height5.8m6.8m10m16m18m21m24.5m24.5m
Max Working Radius5m6m9m15.5m17m20m23m23m
WinchHook rising speed0-8m/min0-10m/min
Wire Rope SpecificationsΦ8mm*35mΦ8mm*35mΦ8mm*45mΦ10mm*70mΦ10mm *80mΦ11mm*80mΦ12mm*80mΦ12mm*80m
Telescopic DeviceBoom form45
Boom length1.7m-5m1.7m-6m2.8m-8.2m4m-15m4.5m-16m5m-21m5.5m-23m5.5m-23m
Heave DeviceBoom Angle/Time0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec
Rotary DeviceRotation angle/speed0-360°(continuous)/60sec
OutriggerForm of outrigger actionManual unscrewing + hydraulic automatic support (two legs)
Running gearway of walkingHydraulic motor drive, two speed
Walking speed0-2.5km/h0-5.5km/h
Gradeability20°(36%)
MotorVoltageAC 380V
EnginePowerAC+GasolineAC+Diesel
Type/displacement9.6 kwYN27GBZ/2.7L
start methodelectric start
boot performance-5°C~40°C
fuel/volumeGasoline/8LDiesel//45L
battery capacity (optional)12v 45AH24v 45AH
Fuel consumption274g/kW-h230g/kW-h
noise levelRated speed≤81.5dBA (1m)
Operating SystemBoom/outriggerManual + remote control (option)
WalkingManual + remote control (option)
operating characteristicsKemai hydraulic system
Standard configurationengine power
Overall size2095*600*1393mm2400*700*1600mm3100*800*1650mm4500*1360*2100mm4950*1560*2235mm5500*1560*2300mm6000*1850*2600mm6500*2000*2400mm
CraftsmanshipPaint assembly process

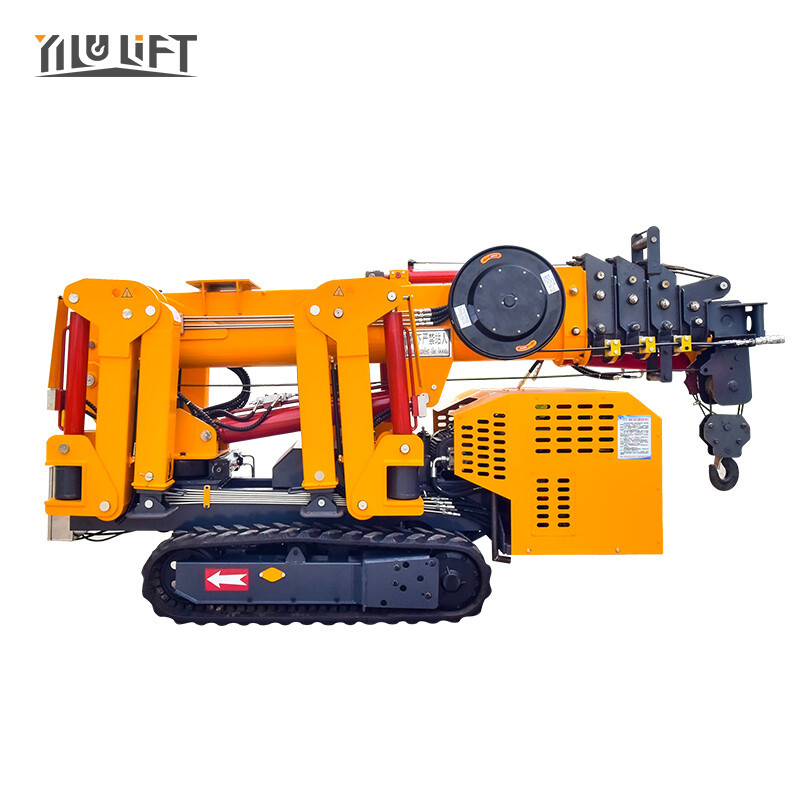

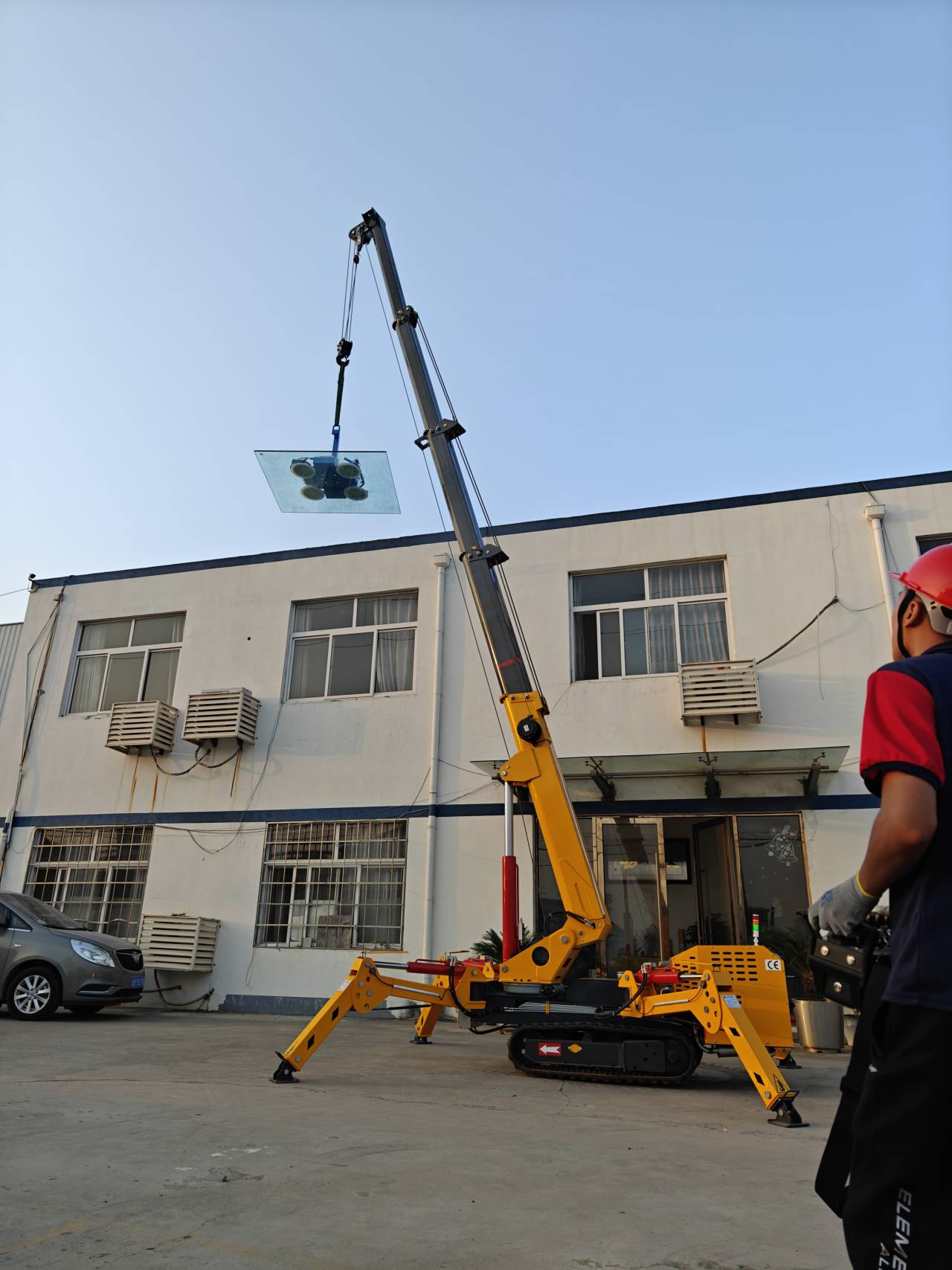

Product Display

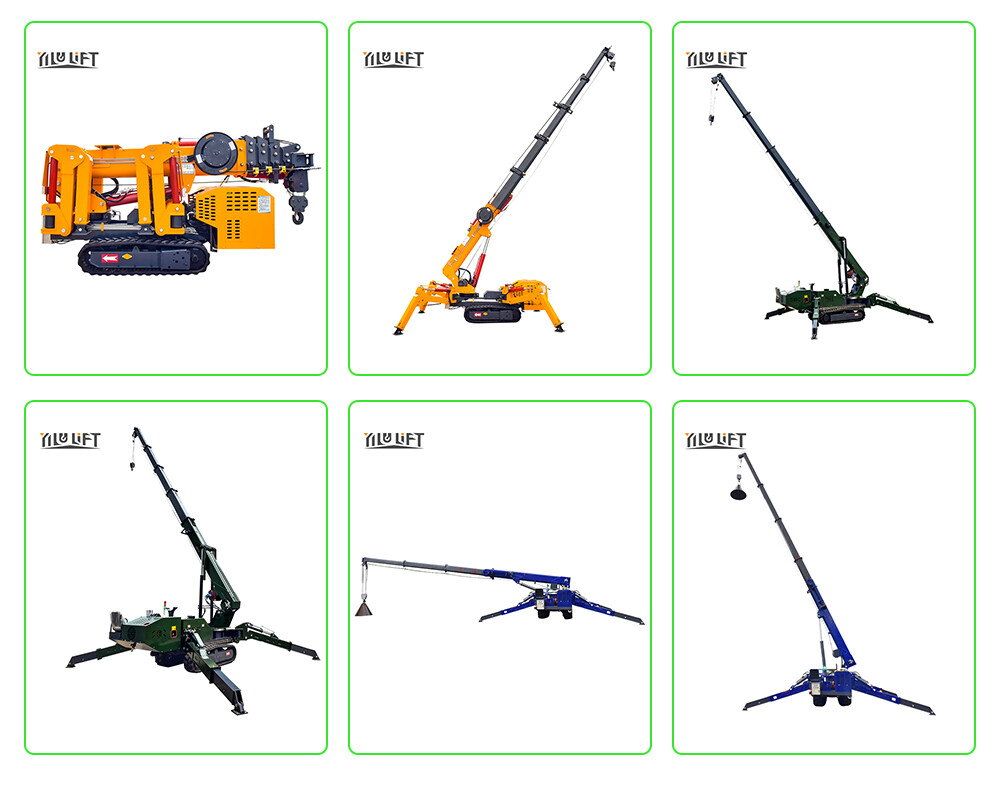

1. 1.2~15Ton Spider Crane-.jpg

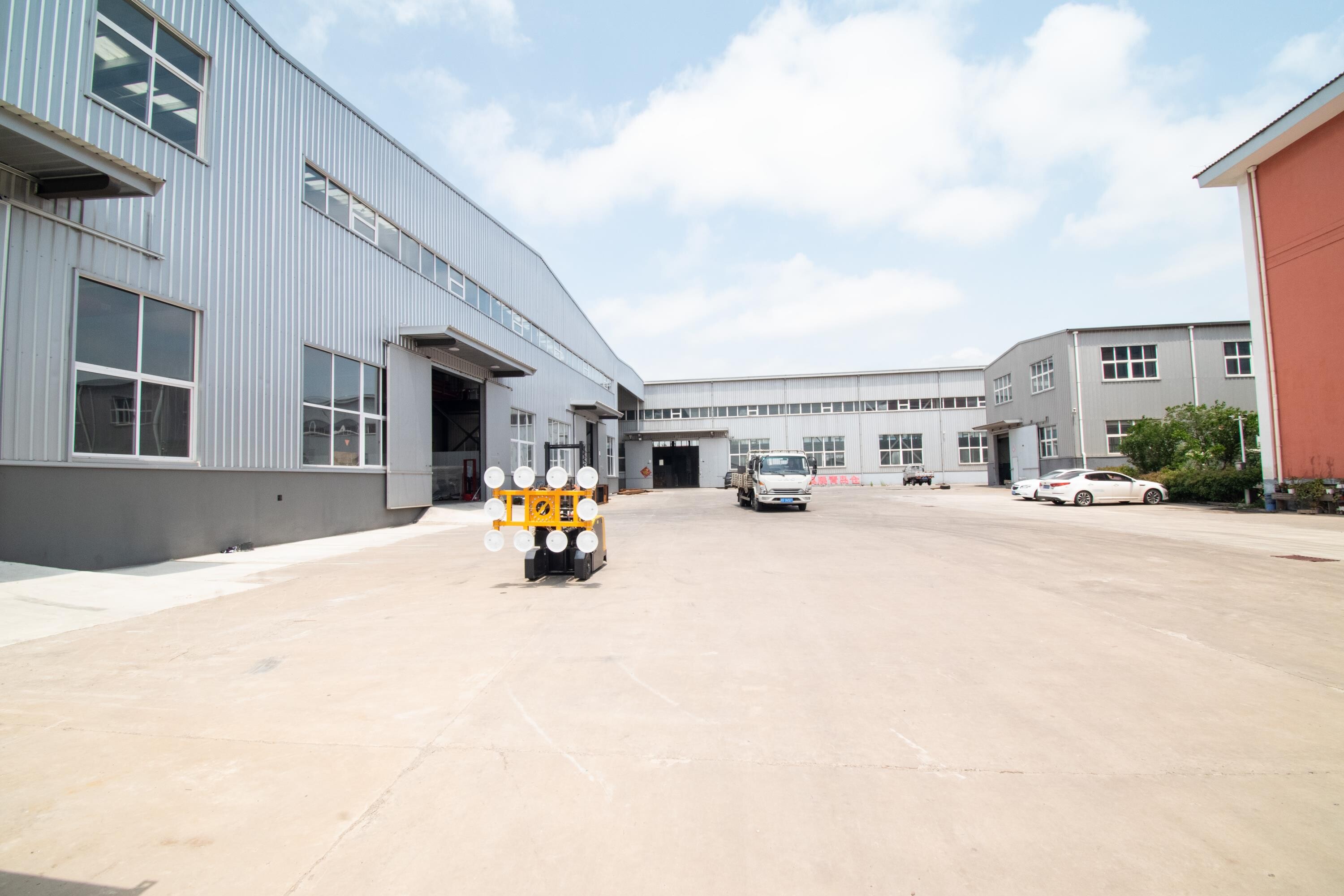

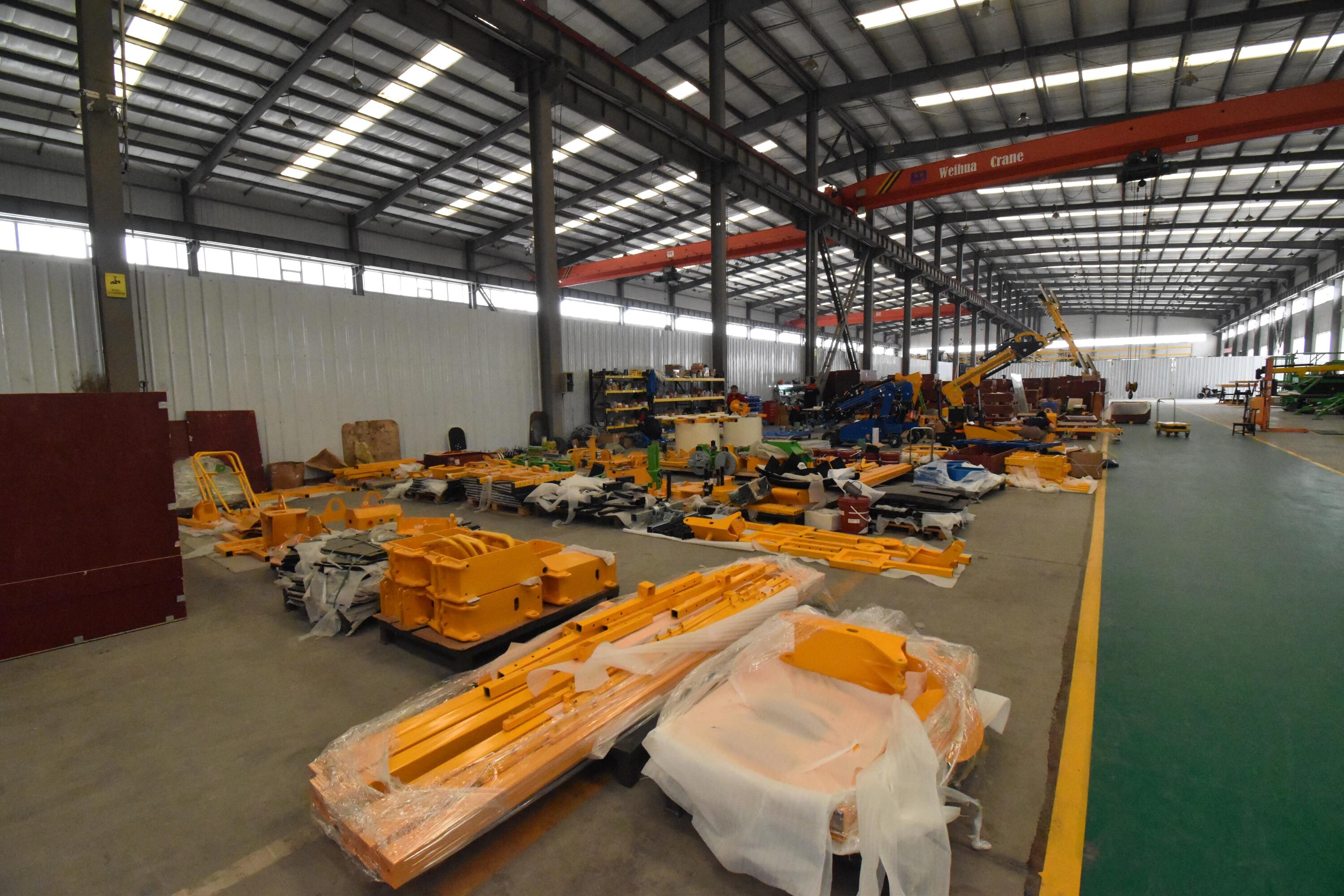

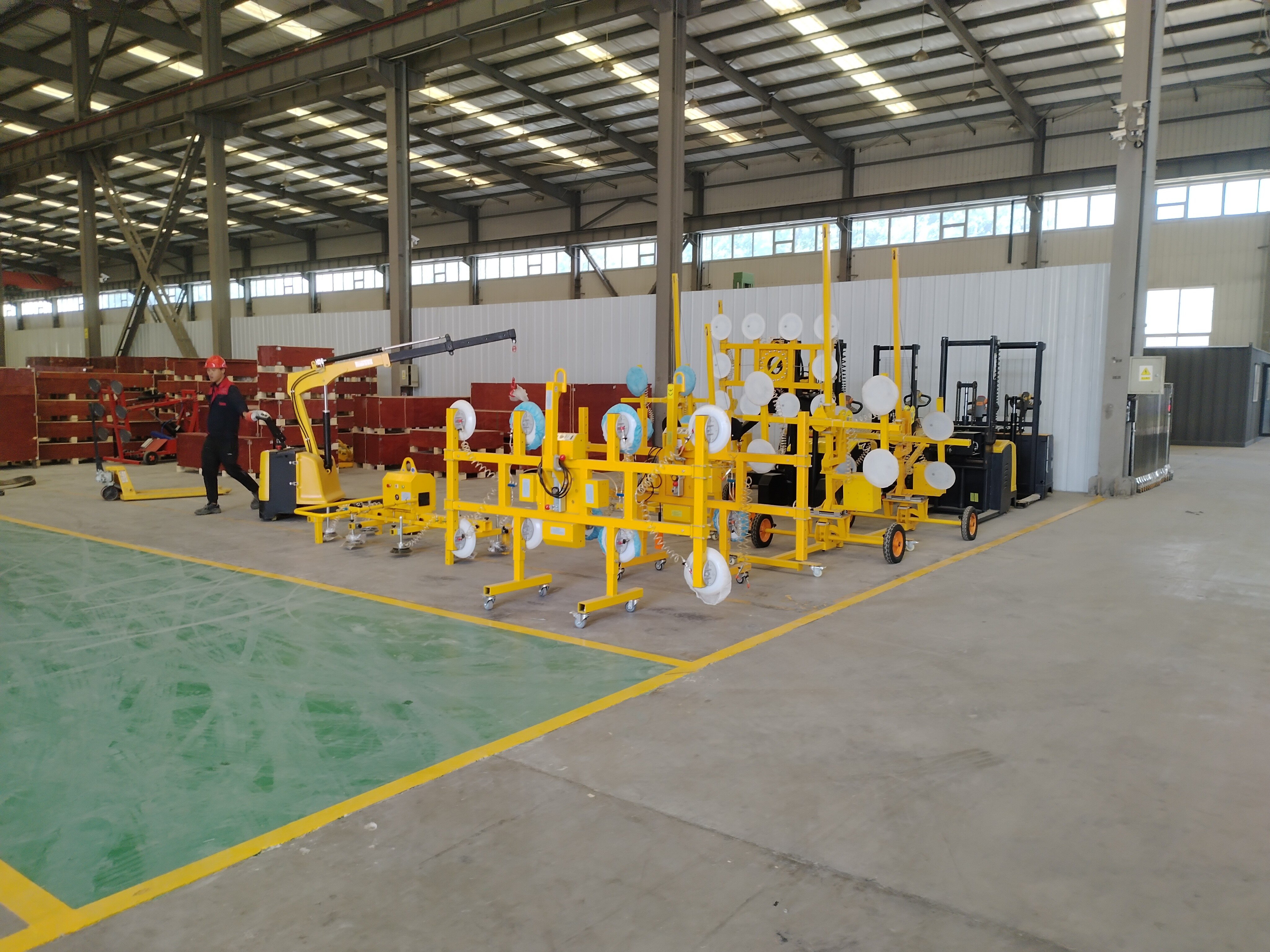

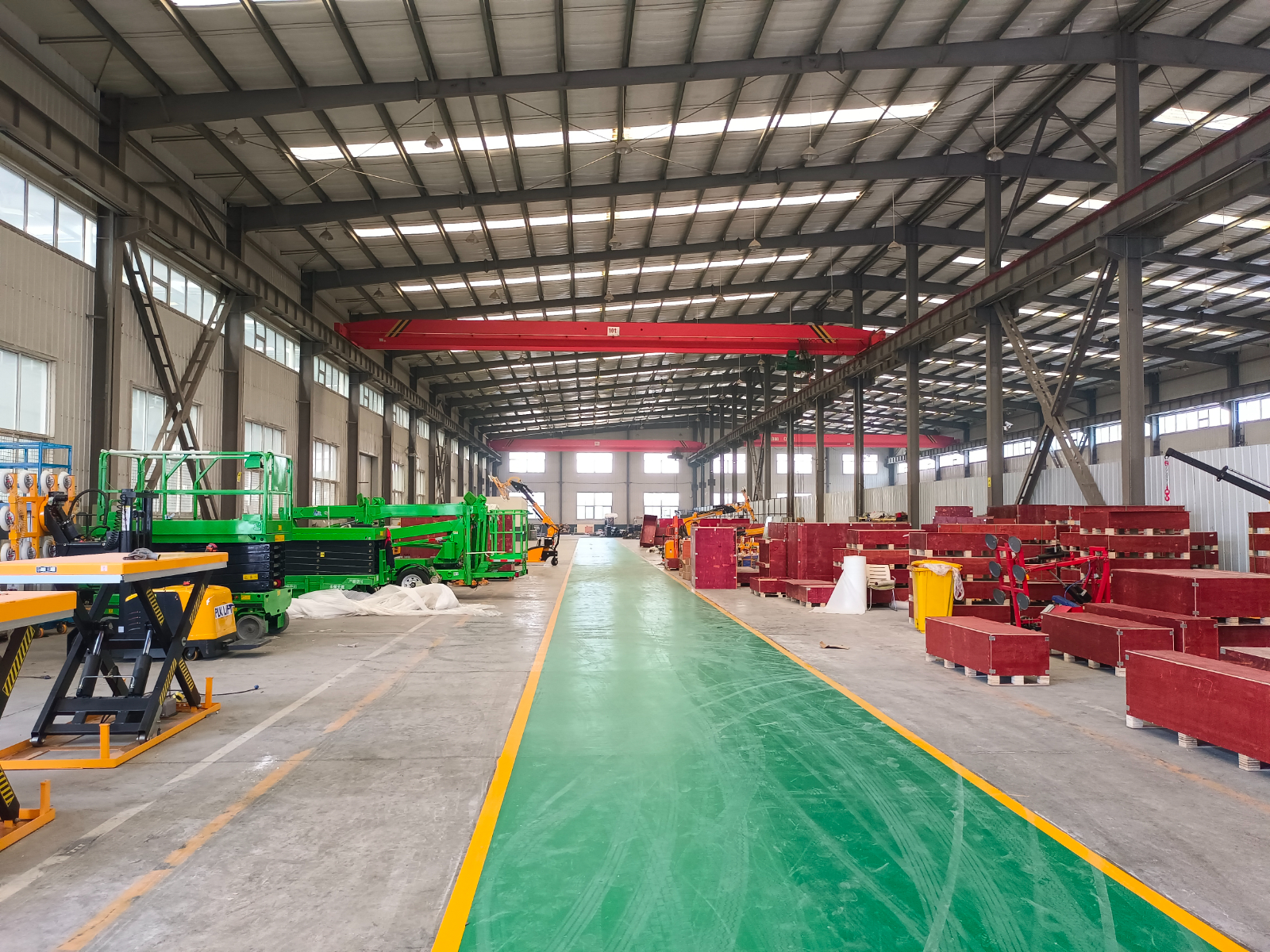

Factory Show

FAQ

  • 1. Are you a factory or trading company?
    Yes, we're factory with over 10 years exporting experience.
  • 2. What's the MOQ?
    1 UNIT
  • 3. Do you offer OEM&ODM service?
     Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
  • 4. What's the quality warranty?
    24 months. Spare parts provided freely within quality warranty.
  • 5. How can I get the after-sales service?
    We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
  •  6. What's your QA&QC policy?
    100% Test before shipping.
